Drum loading arm

Drum loading arms are used to fill and empty small storage methods such as drums and IBC containers. The loading arm connects the container to the loading system by means of a flange connection or through the opening.

Product Features

By using WLT swivel joints and high-quality materials, the drum loading arms are suitable for loading any type of liquid, they are long-lasting. The loading arms are particularly user-friendly on account of the expert design.

  • telescopic vapour return line
  • drive unit for positioning

Are you looking for a product that matches your situation more closely? We supply tailor-made solutions: the basic designs are customised where necessary to suit specific applications or your individual requirements.

Technische details

WLT provides the ideal drum loading arm for every situation. There are two basic types available in several versions and materials.

type TS – for fixed working areas

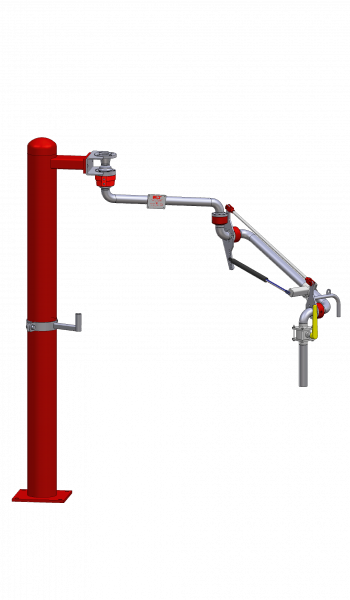

TK – for considerable working areas
diameter DN25 (1″) up to DN50 (2″)
material carbon steel, stainless steel, aluminium, PTFE lined
control manual, pneumatic

All details


Technische details DS.TK.02.N


  • vapour return line
  • steam tracing, oil jacketing, electrical tracing
  • sanitary version
  • overfill protection
  • detection devices
